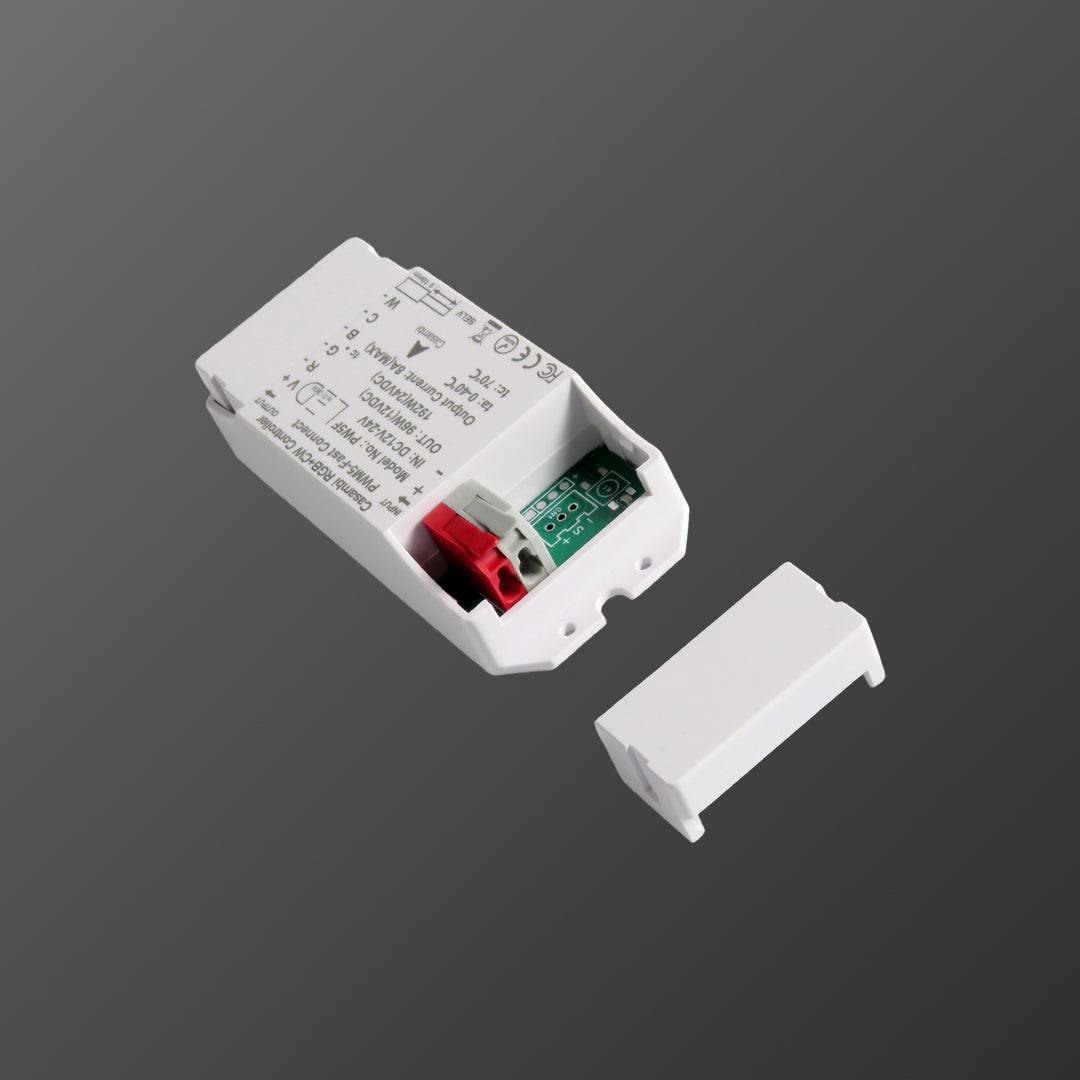

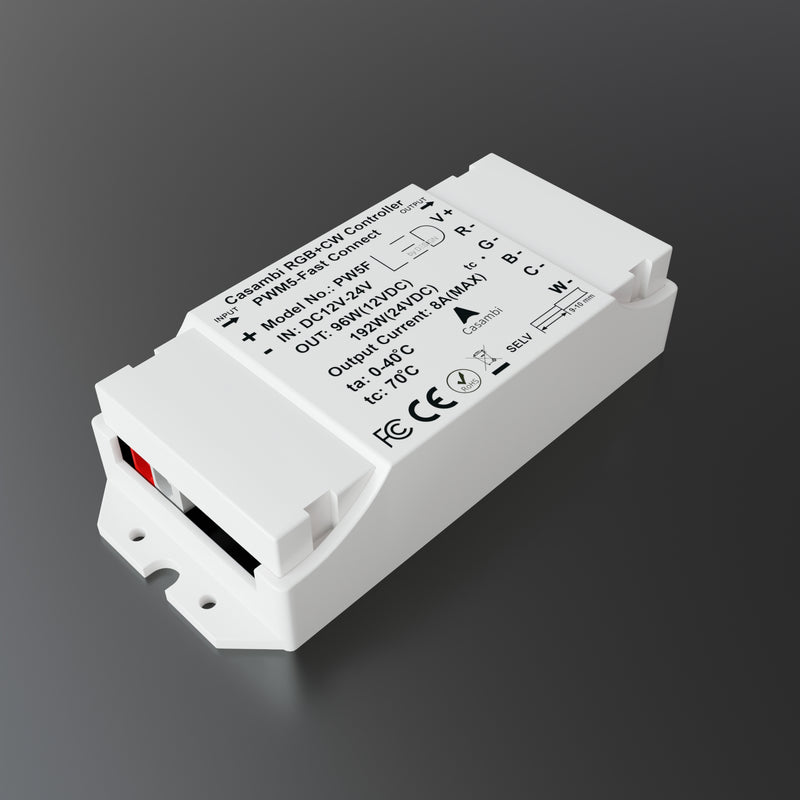

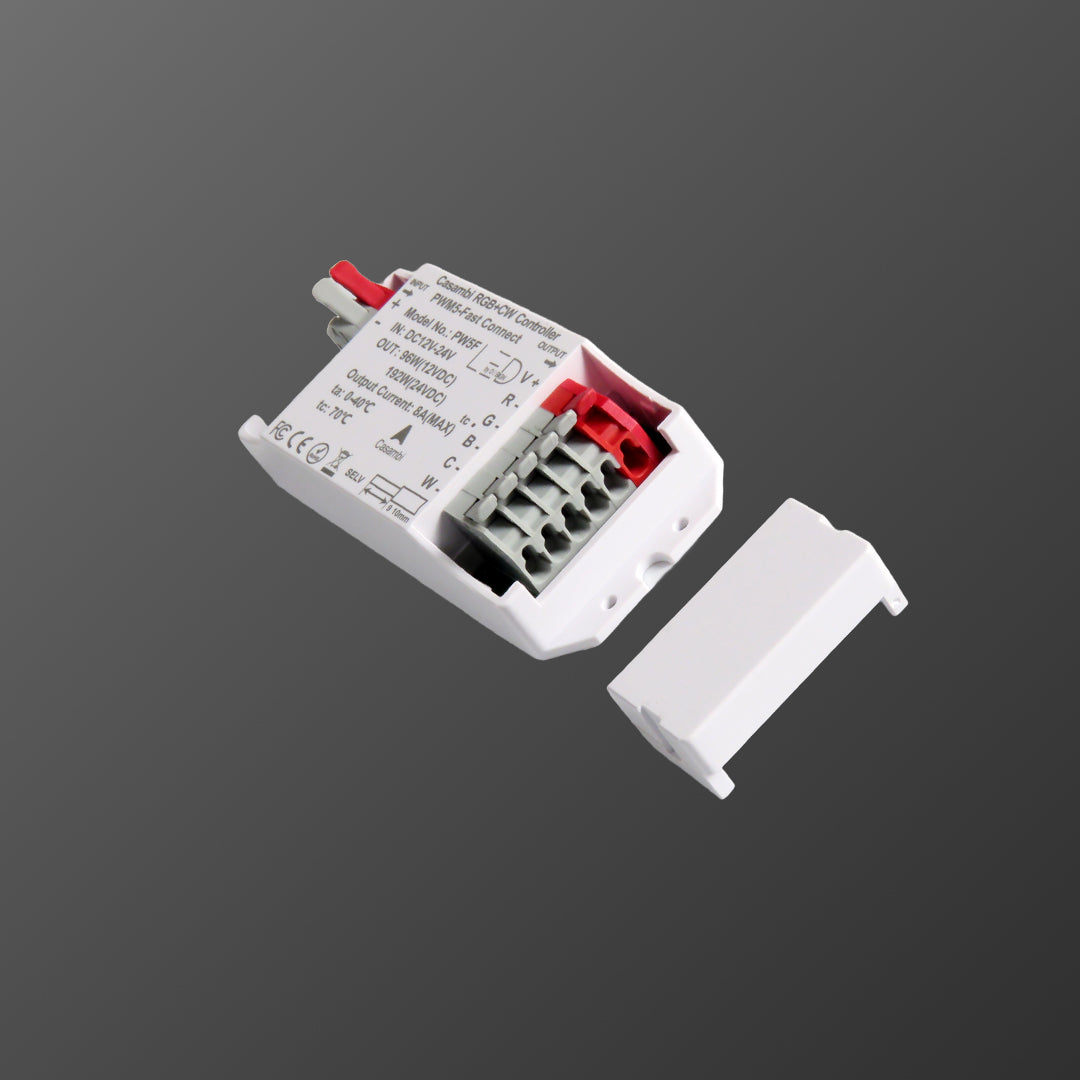

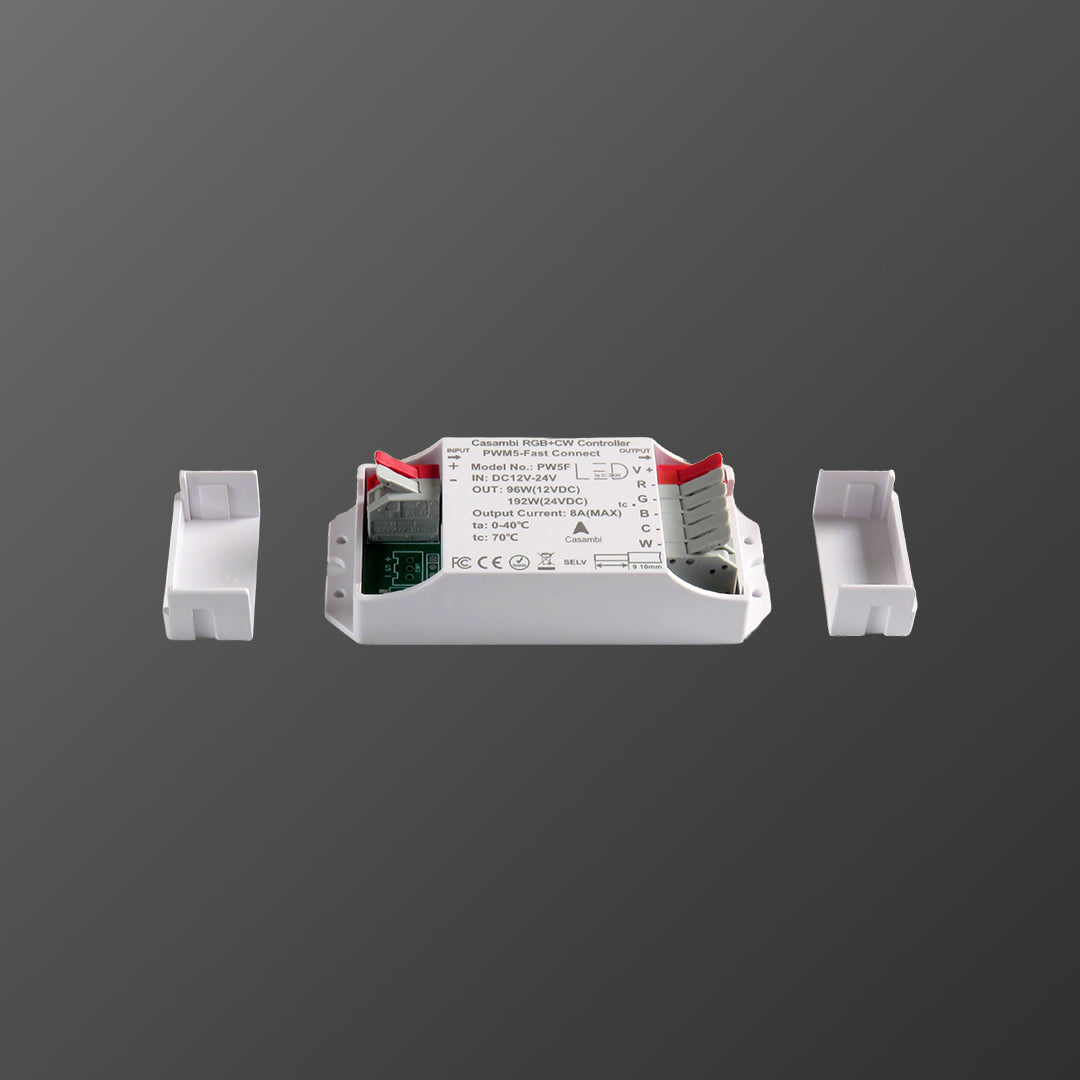

The PWM5 Fast Connect is a compact 5-channel PWM dimmer designed for controlling constant-voltage LED loads such as LED strips and modules. Its innovative push and-lock connectors allow for fast, tool-free wire connections—no screws or screwdrivers required. Equipped with Casambi Bluetooth connectivity, the device enables intuitive wireless control of LED lighting fixtures via the Casambi App. It is installed between a 12–24VDC power supply and the constant-voltage LED load. Each channel supports a maximum output current of 4A, with a total combined output of up to 8A across all channels. The dimmer features flicker-free dimming for smooth and stable light output, and includes overload protection to ensure safe and reliable operation. Ideal for architectural, retail, and hospitality lighting applications, the PWM5 Fast Connect offers a powerful and user-friendly solution for dynamic LED control.
Technical Specifications:
| Output Current |
8A (4A/ch) |
| Operating temp |
-20 to 50°C |
