PWM2-Push
PWM2-Push

PWM2-Push

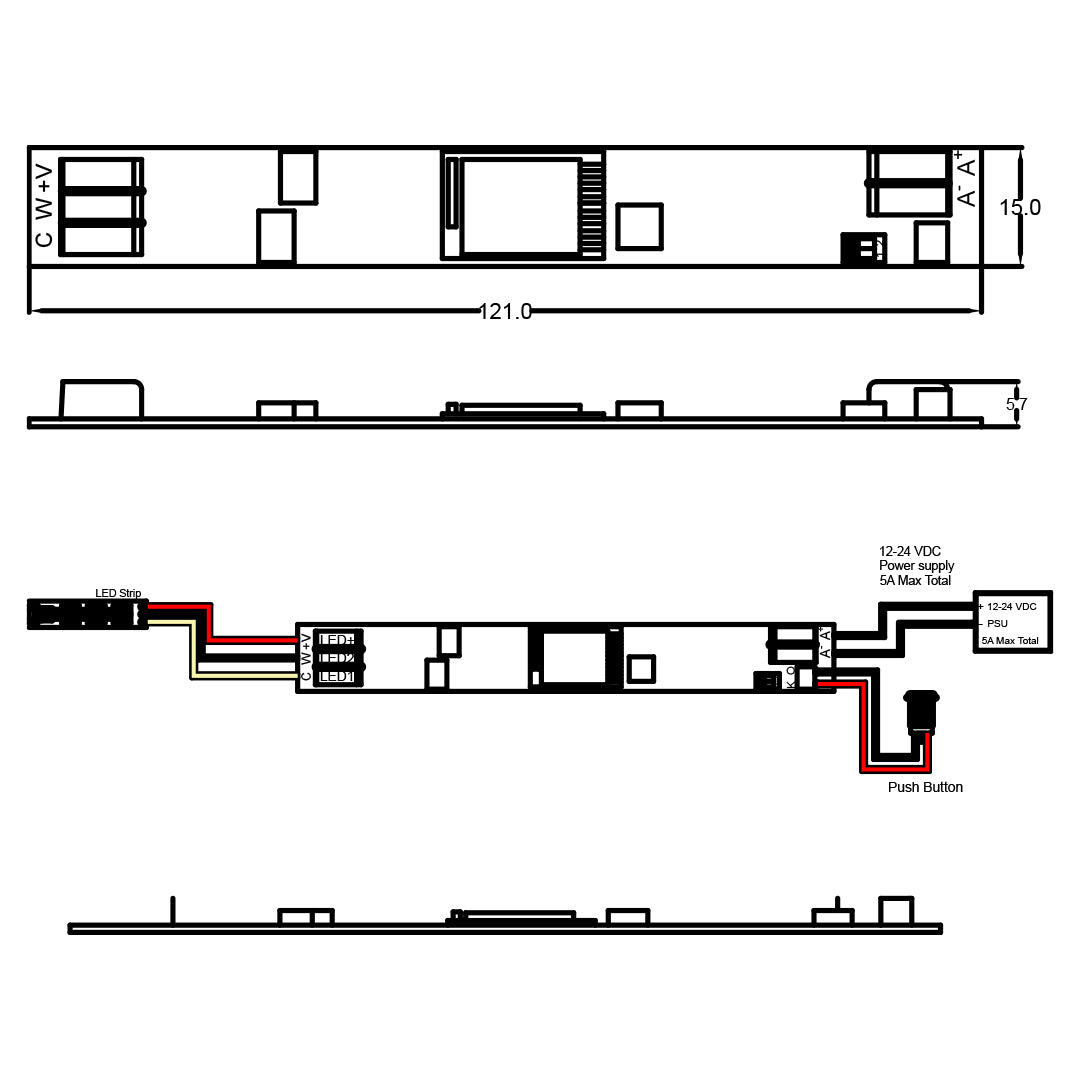

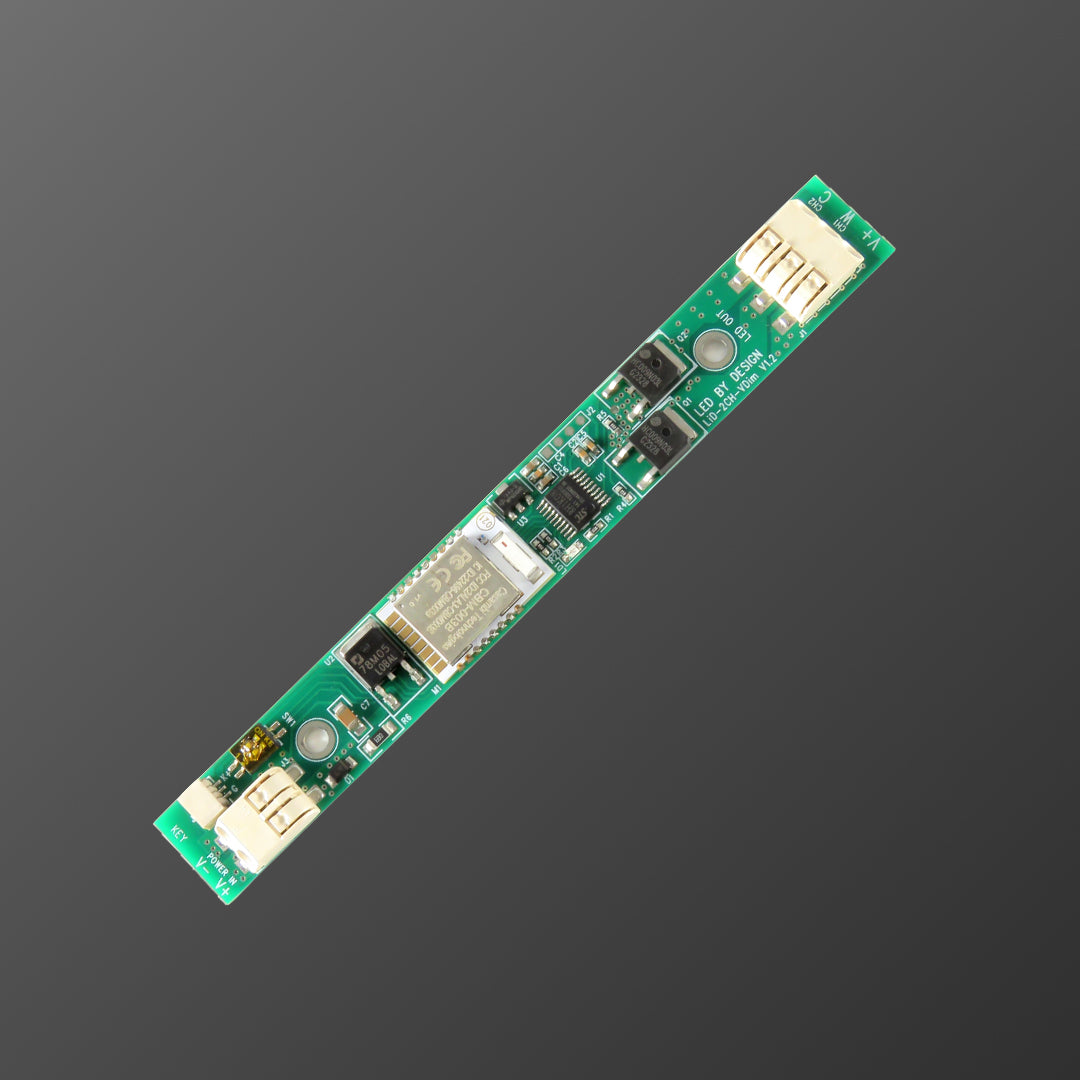

PWM2-Push is 2 channels dimmer for Tuneable White or WarmDim or 2 dimming channels constant voltage LED load like LED strip. PWM2-Push supports up to 5A, fully controlled by Casambi App. PWM2-Push can also be controlled by a pushDim button for Dim, CCT and
On/Off control. Thanks to its small size and linear shape it can be integrated into light
fixtures

Technical Specifications:

Input Voltage 12-24V DC
Max. output current 5A, 120W @24V, 60W @12V
Output Voltage 2 Channels, same as input
Operating temp -20. to +45°C
Weight(g) 10.4
