PWM2 Pro - UL Certified

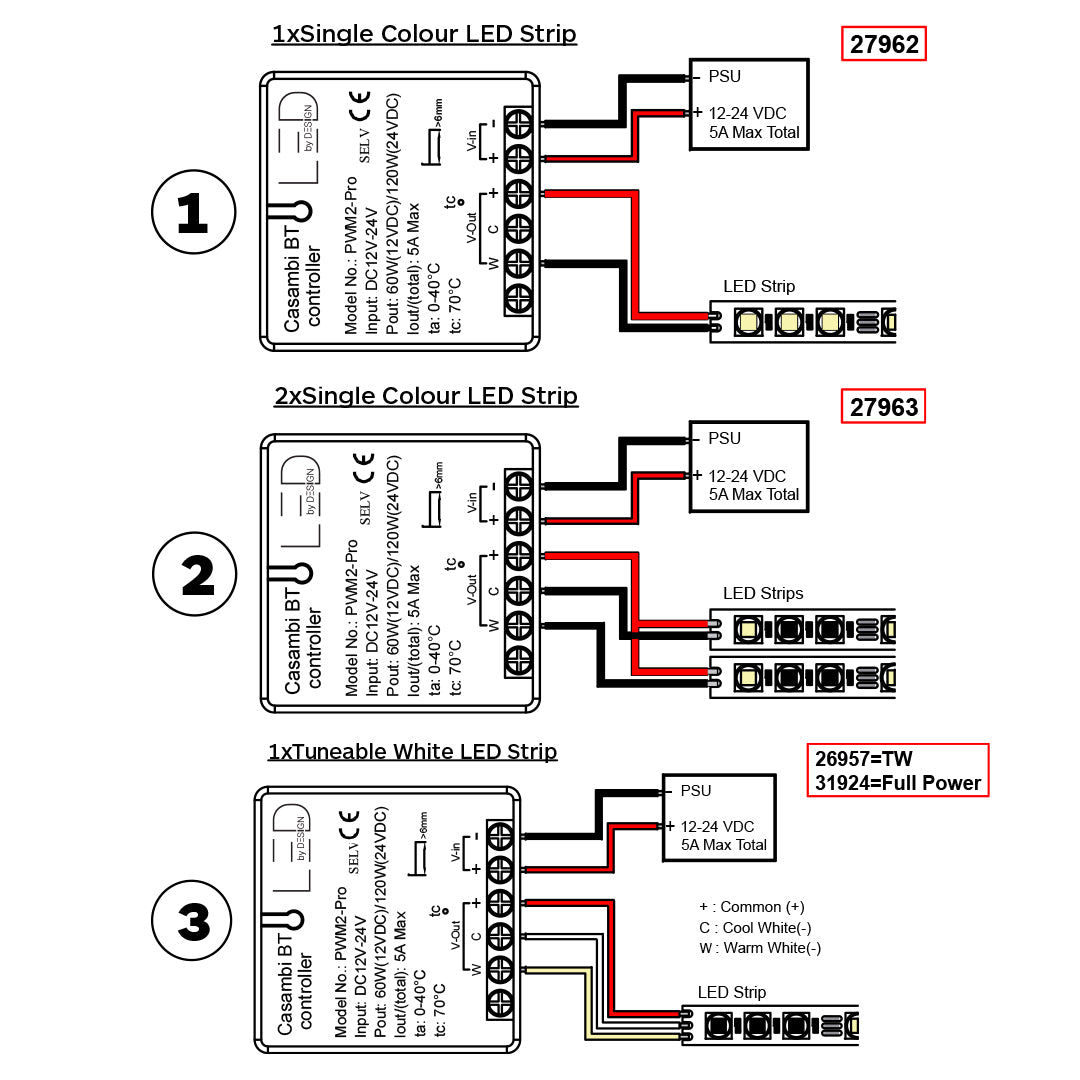

PWM2 Pro is a 2-channel PWM dimmer that can be controlled via Bluetooth and is enabled with Casambi technology. It is designed specifically for constant-voltage LED loads, such as LED strips and modules. It is installed between a 12-24V DC power supply and the LED load. The maximum current output can be freely divided between the two channels. PWM2 Pro comes with overload protection and guarantees flicker-free
performance.
Technical Specifications:
| Input Voltage | 12-24V DC |
| Max. input current | 12V DC - 5A, 24V DC - 4.16A |
| Max. output current | Same as input |
| Output Voltage | Same as input |
| Operating temp | -20 to 50°C (-4 to 122°F ) |

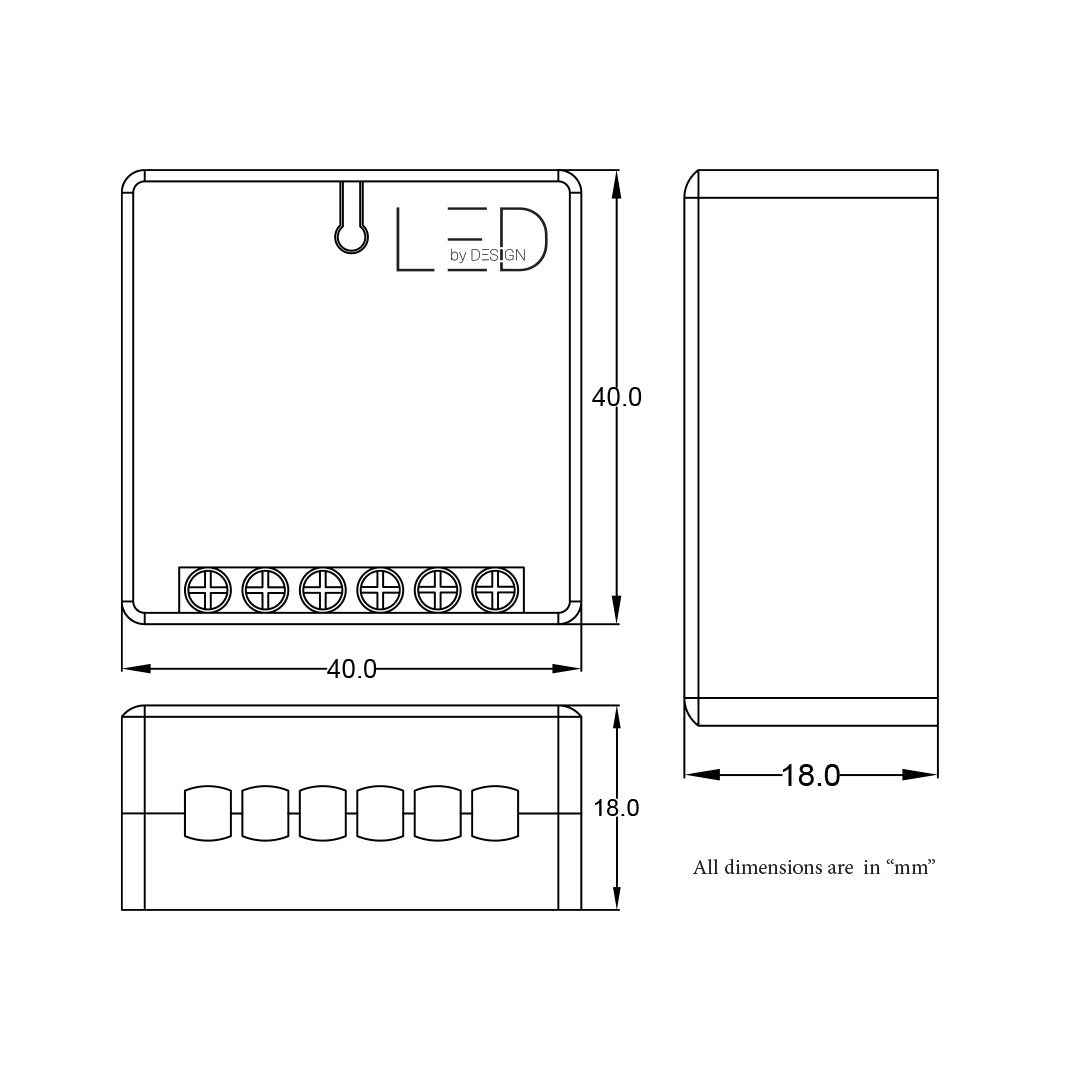

| Case size | 1.57 x 1.57 x 0.71 Inches |
| Weight(g) | 19 |
