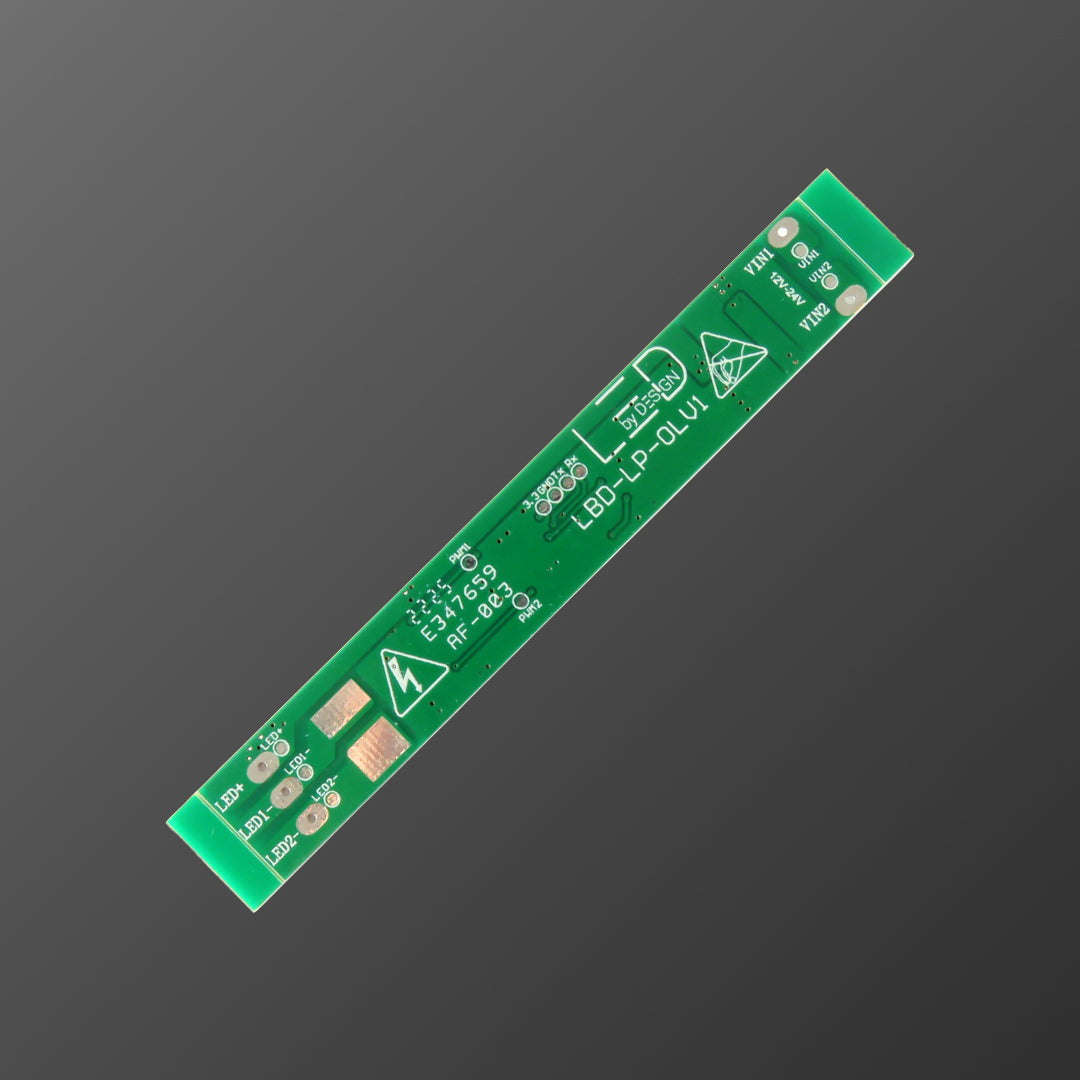

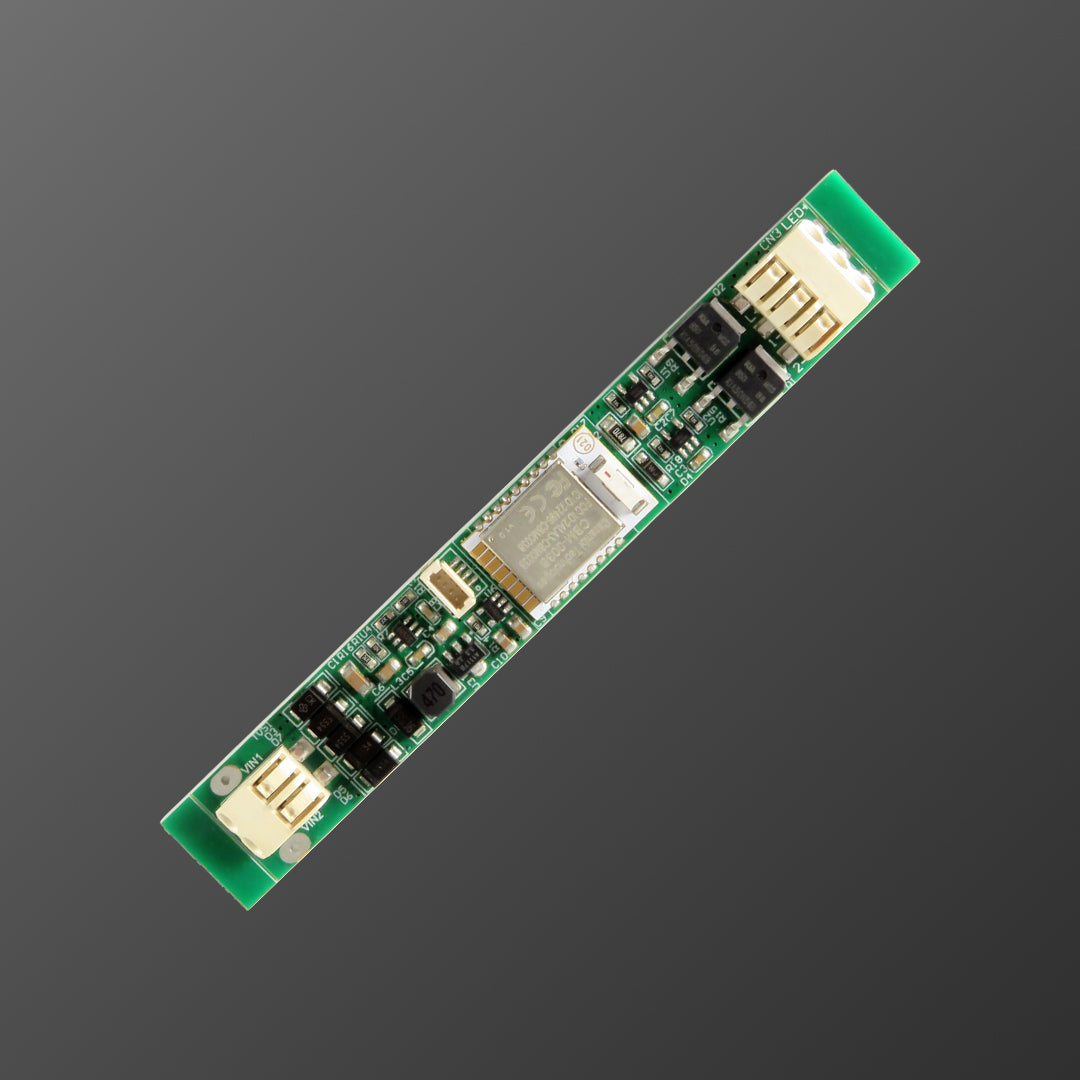

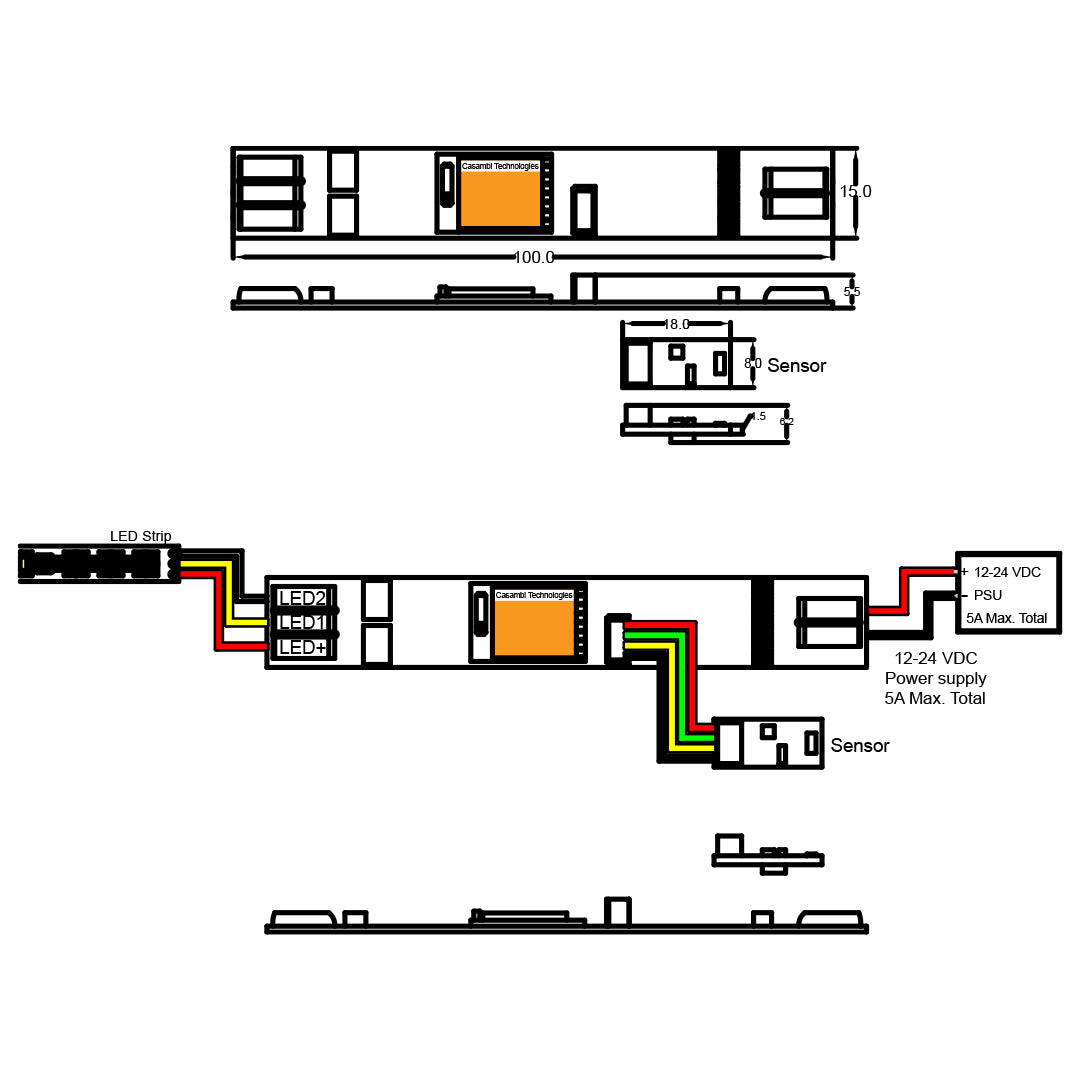

PWM2-Pico is a 2-channel dimmer designed for Tuneable White, WarmDim, or 2 channels of constant voltage LED load, such as LED strips. It supports up to 5A and can be fully controlled using the Casambi App. Additionally, PWM2-Pico can be controlled using a gesture control sensor for dimming and on/off control. Thanks to its small size and linear shape, it can be easily integrated into light fixtures.

Technical Specifications:

Input Voltage 12-24V DC
Max. output current 5A, 60W@12V & 120W@24V
Output Voltage 2 Channels, same as input
Operating temp -20 to 45°C
Case size  100 x 15 x 5.5 mm
Weight(g) 15



$69.00
$69.00
Shipping calculated at checkout.
Request Quotation
Downloads

Datasheet
