LV PowerDim TW (HC) (1 or 2Ch) 330 mA To 800 mA
LV PowerDim TW (HC) (1 or 2Ch) 330 mA To 800 mA

LV PowerDim TW (HC) (1 or 2Ch) 330 mA To 800 mA

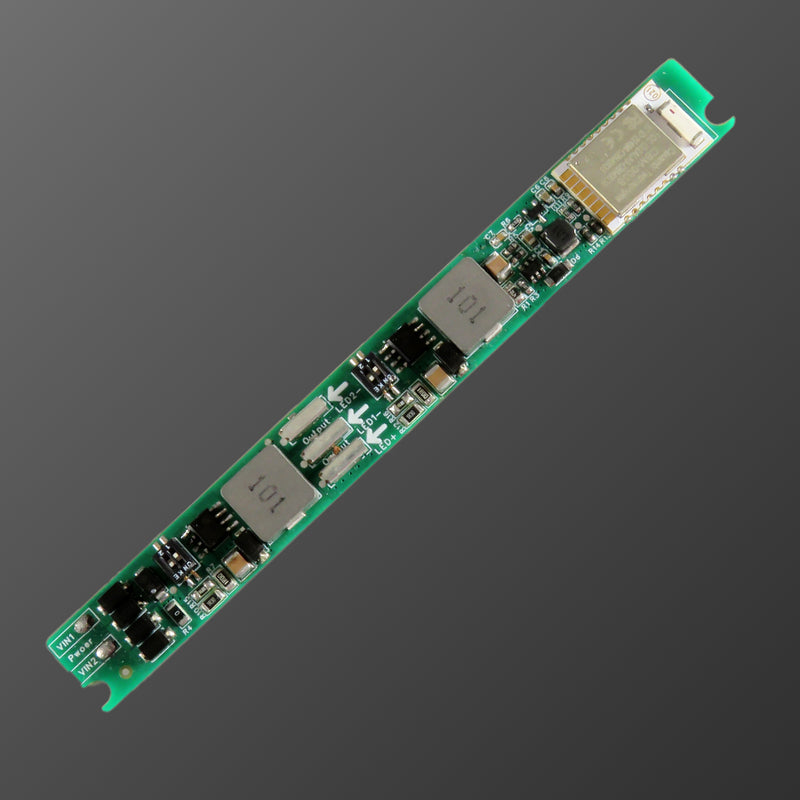

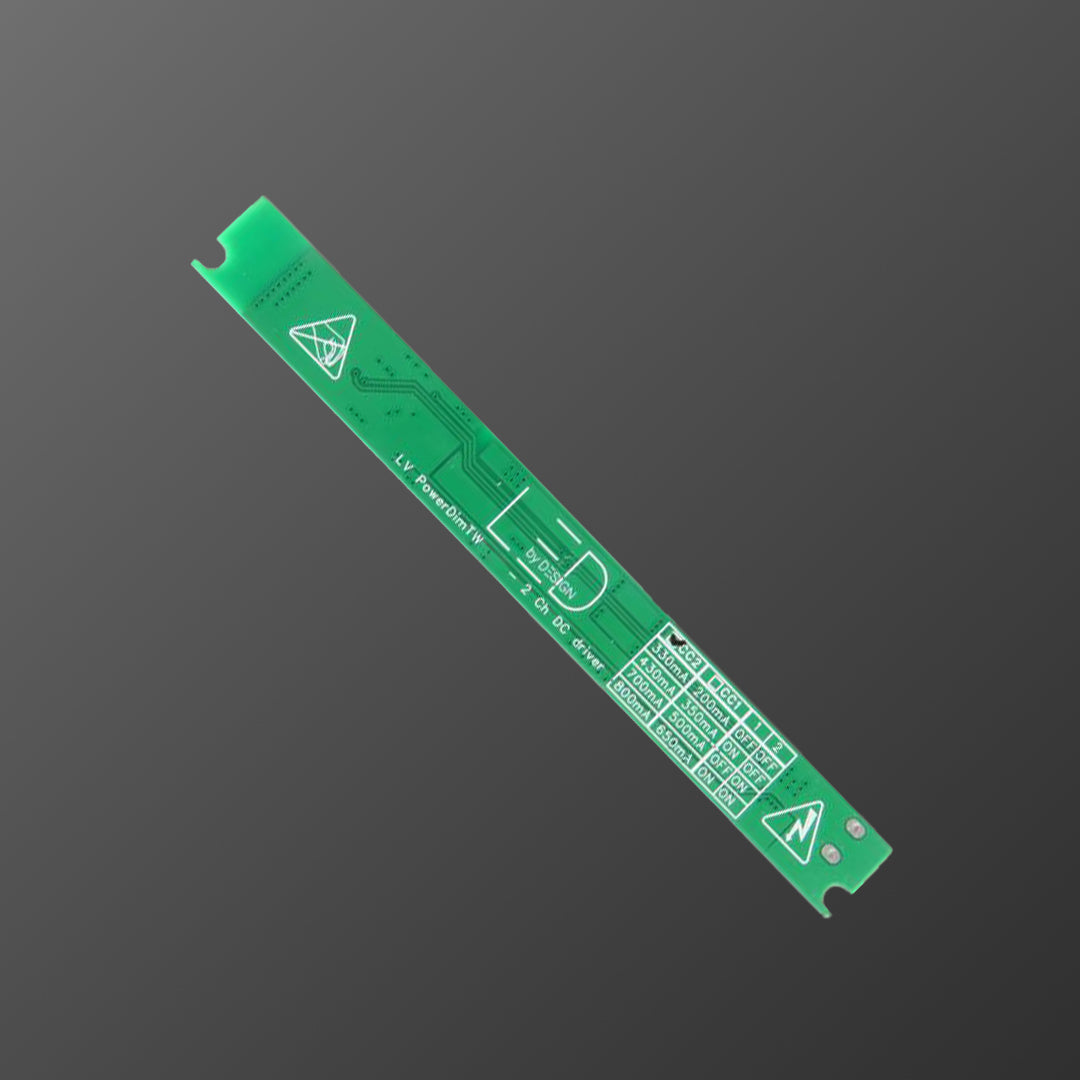

LV PowerDim is Bluetooth wireless controlled LED driver with 1 channel constant current output. LV PowerDim is low voltage DCDC driver with 48VDC input works with Stucchi LV track system and fit perfectly in to Stucchi LV track adapters. Adjustable output current 330mA/430mA/700mA/800mA by DIP switch. 32w with Dimming range from 0 to 100% , No flickering.

Each LV-PowerDim driver uses on board Bluetooth module.

Technical Specifications:

Input Power  48VDC
Output  2 Channel 8-40V , Max 32w
Output Current   330mA/430mA/700mA/800mA
Wire Type  0.75mm Wago Push Connector
Operating temp  -20 to 80 °C
Size (mm)  125x14.4x10
Size (in)  4.92x0.56x0.39
Weight(g)  30
$59.00
$59.00
Shipping calculated at checkout.
Request Quotation
Downloads

Datasheet
