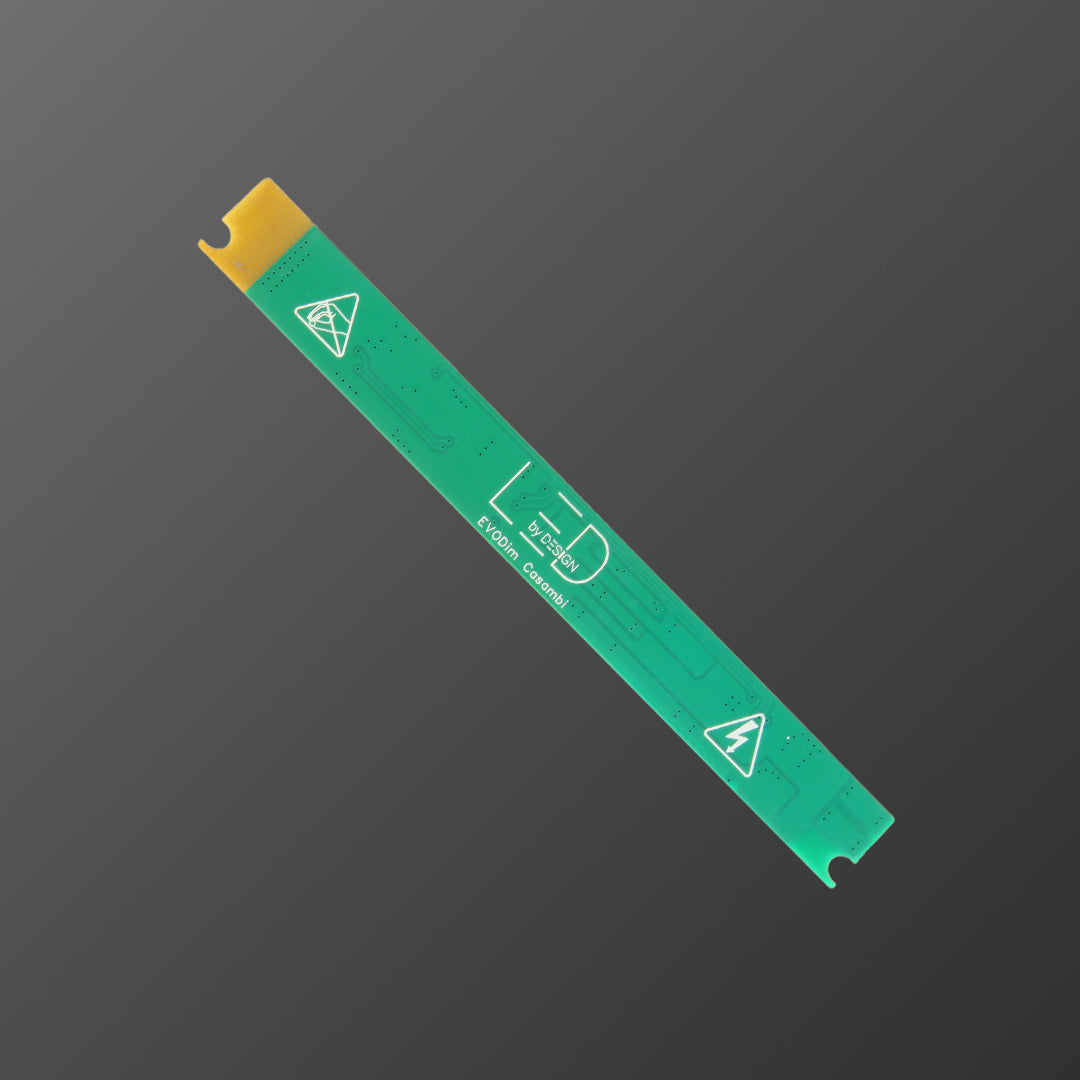

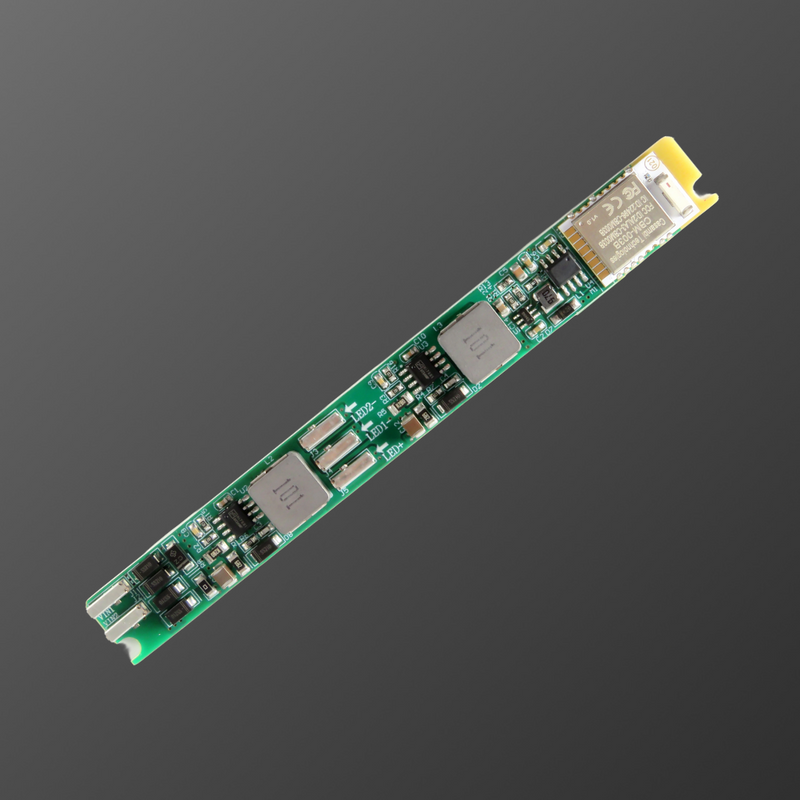

The ultimate DCDC driver, 24-48VDC input With 1 or 2 output channels and constant current mode, this driver is perfect for Tuneable white LEDs. Whether you need a single-channel or dual channel mode, the Casambi App puts complete control at your fingertips. Set output mode and current settings from the app to enjoy flicker-free dimming from 0-100%. Designed to work seamlessly with the Stucchi EVO Track adapter, EVODim Casambi is the go-to solution for confident lighting design.

Technical Specifications:

Input Power 24-48VDC
Output  1 or 2 Channels
Output Current 100-700mA (Set by Casambi App)
Wire Type Wago Connectors (20-24AWG wires)
Operating temp -20 to +50 °C

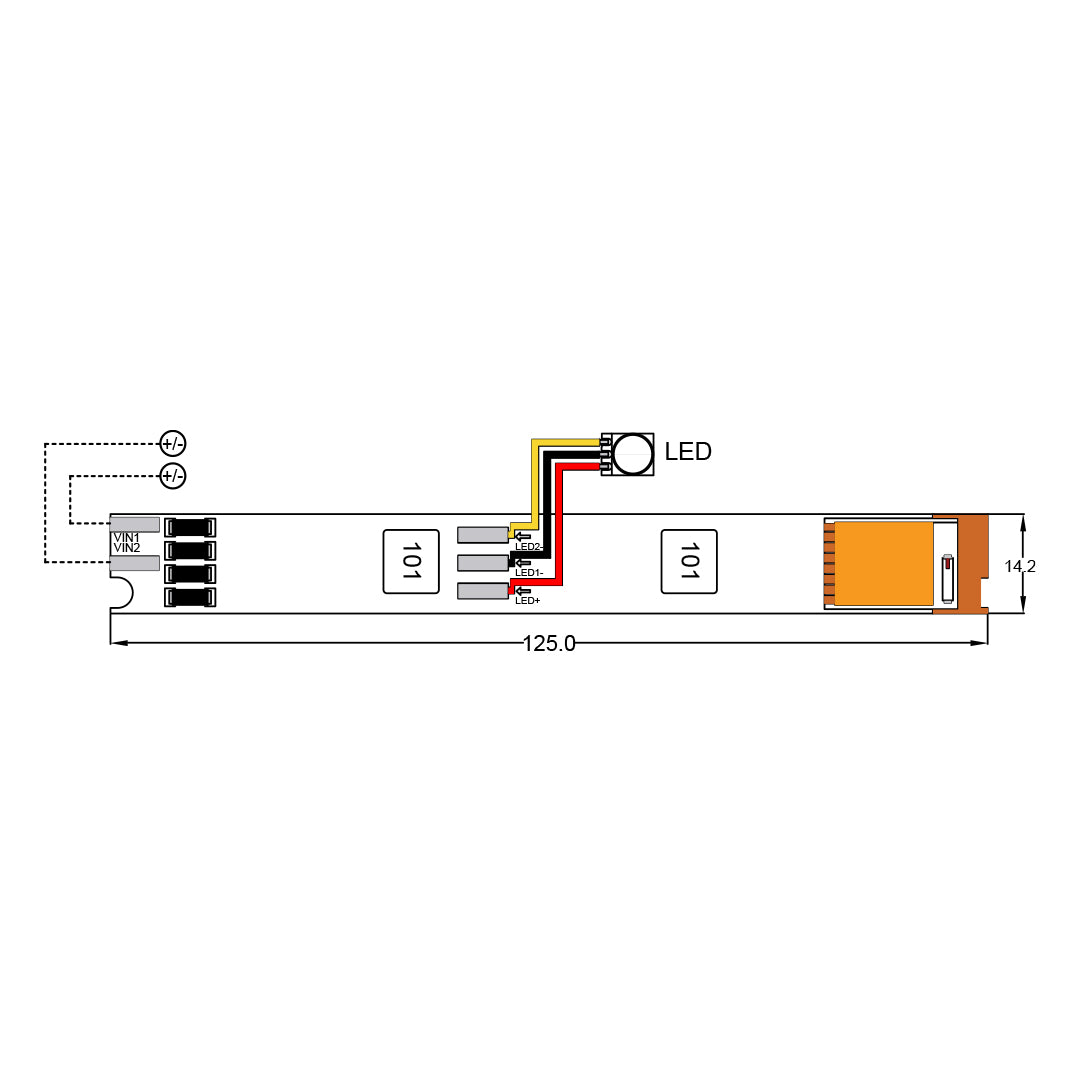

Size (mm) 125x14.2x10
Size (in) 4.92x0.56x0.39
Weight(g) 30
