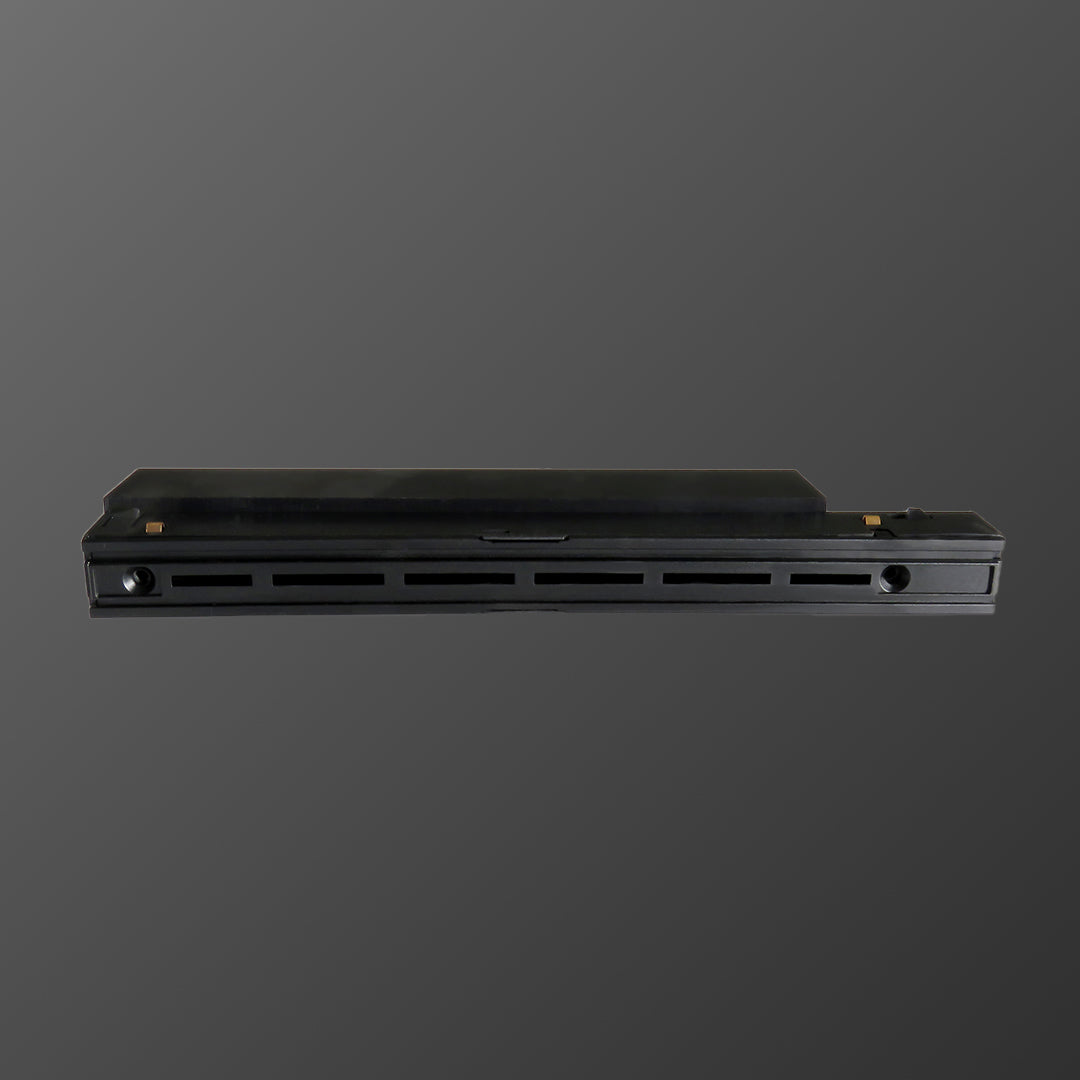

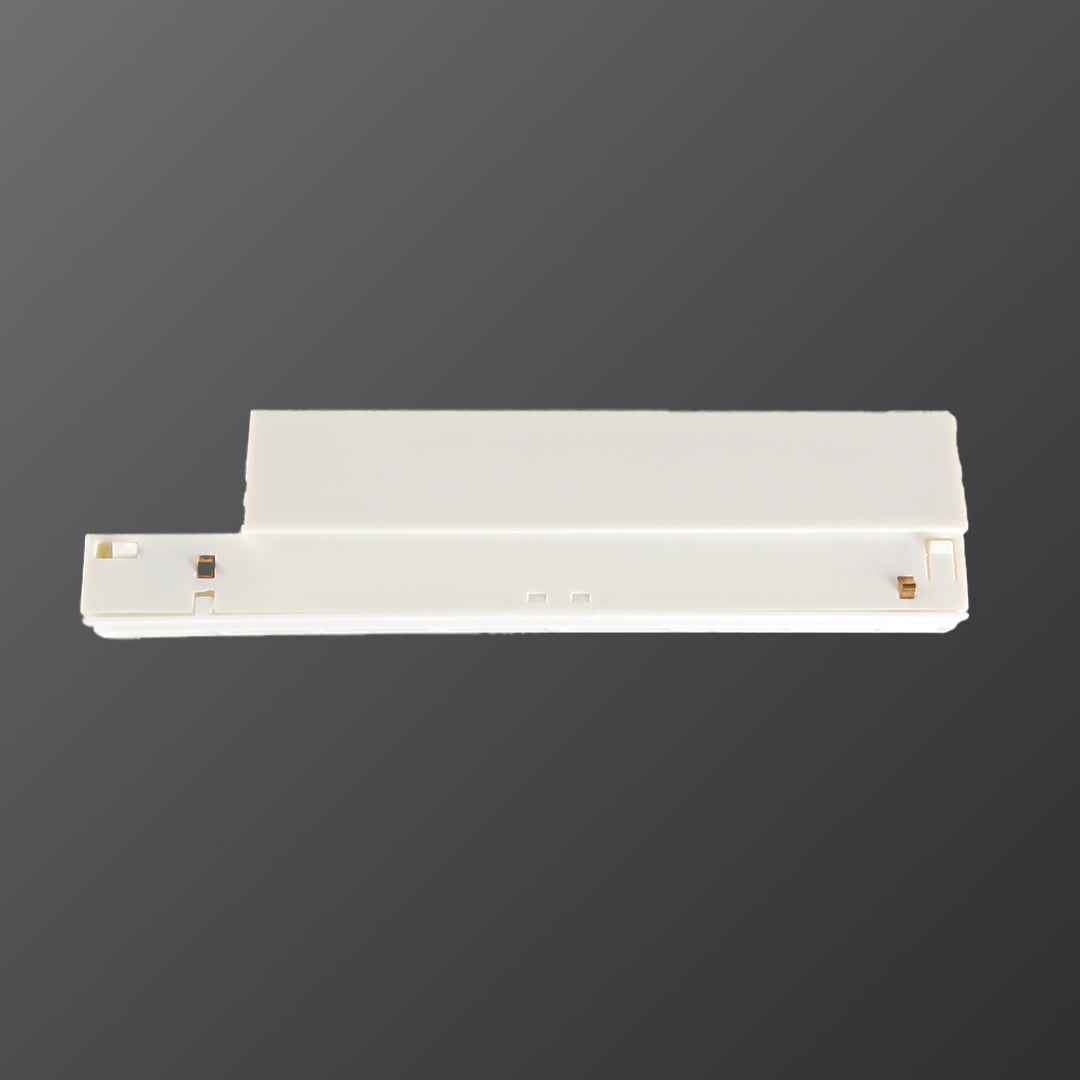

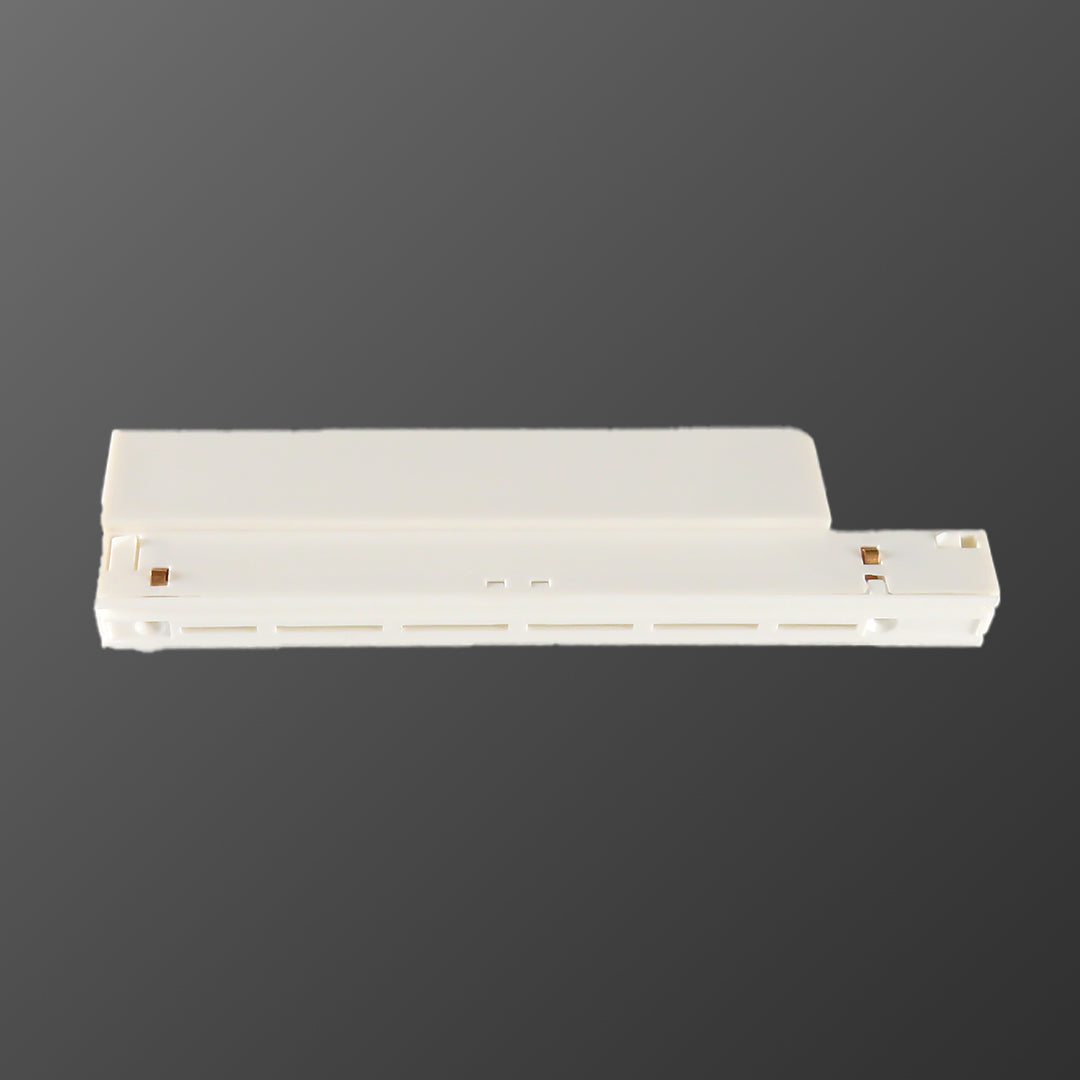

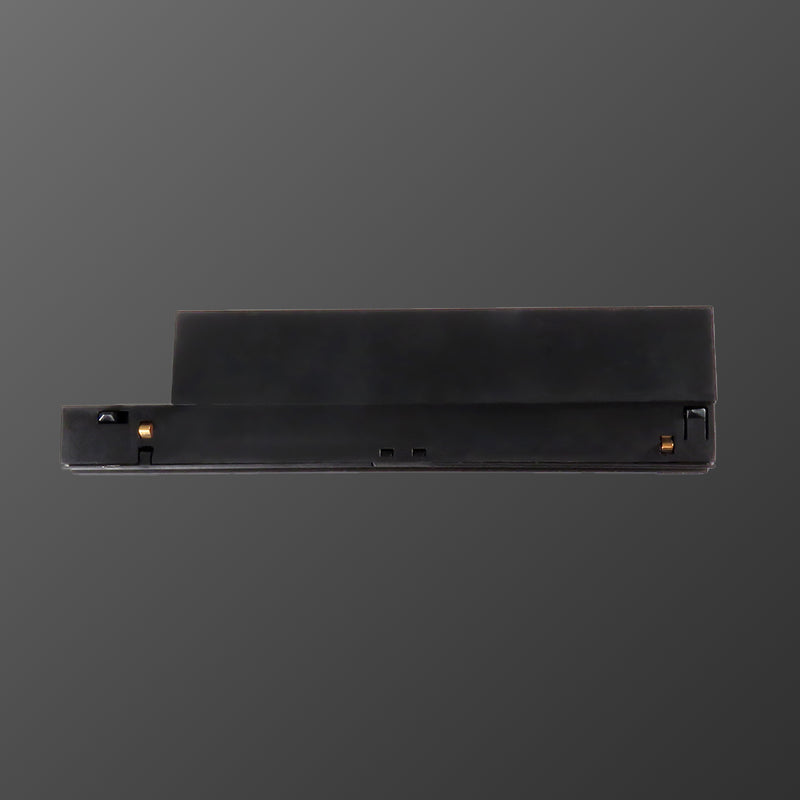

EVO Casambi 0-10V Interface
EVO Casambi 0-10V Interface
EVO Casambi 0-10V Interface
EVO Casambi 0-10V Interface
EVO Casambi 0-10V Interface

EVO Casambi 0-10V Interface

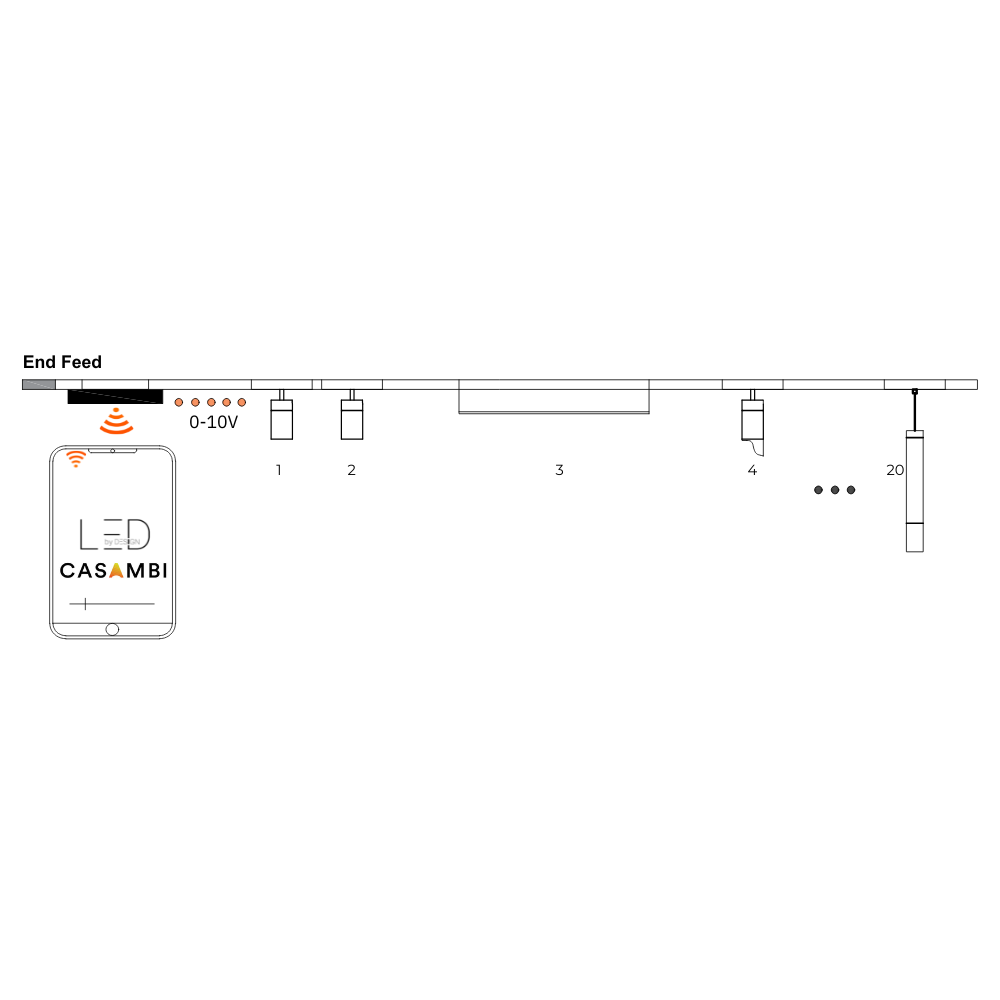

Introducing the game-changing EVO Casambi 0-10V Interface! This powerful device offers unrivaled cluster control of 0-10V dimmable track fixtures, putting you in complete command of your lighting design. With just one Casambi 0-10V interface, you can effortlessly control up to 20 devices. Take full control of your track lights with ease through the intuitive Casambi App - dim them, turn them on/off, set scenes, and even automate timers. The installation is a breeze, and setup couldn't be easier. Elevate your architectural designs with confidence using the EVO Casambi 0-10V Interface - revolutionize lighting control like never before!

Technical Specifications:

Input Power 24-48VDC
Output 0-10 dim Signal
Output Current (0-10 Current) 25 mA
Wire Type 20-24 AWG wire connector
Operating temp -20 to +80 °C
Size (mm) 172x20x58.2
Size (in) 6.77x0.79x2.29
Weight(g) 30


$89.00
$89.00
Shipping calculated at checkout.
Request Quotation
Downloads

Datasheet
