PWM2- PRO CE Certified
PWM2 Pro is a 2-channel PWM dimmer that can be controlled via Bluetooth and is
enabled with Casambi technology. It is designed specifically for constant-voltage
LED loads, such as LED strips and modules. It is installed between a 12-24VDC power supply and the LED load. The maximum current output is 5A and can be freely divided between the two channels. PWM2 Pro comes with overload protection and guarantees flicker-free performance.
enabled with Casambi technology. It is designed specifically for constant-voltage
LED loads, such as LED strips and modules. It is installed between a 12-24VDC power supply and the LED load. The maximum current output is 5A and can be freely divided between the two channels. PWM2 Pro comes with overload protection and guarantees flicker-free performance.
Technical Specifications:
| Input Voltage | 12-24V DC |
| Max. input current | 5A |
| Max. output current | 5A |
| Output Voltage | Same as input |
| Operating temp | -20 to 50° |

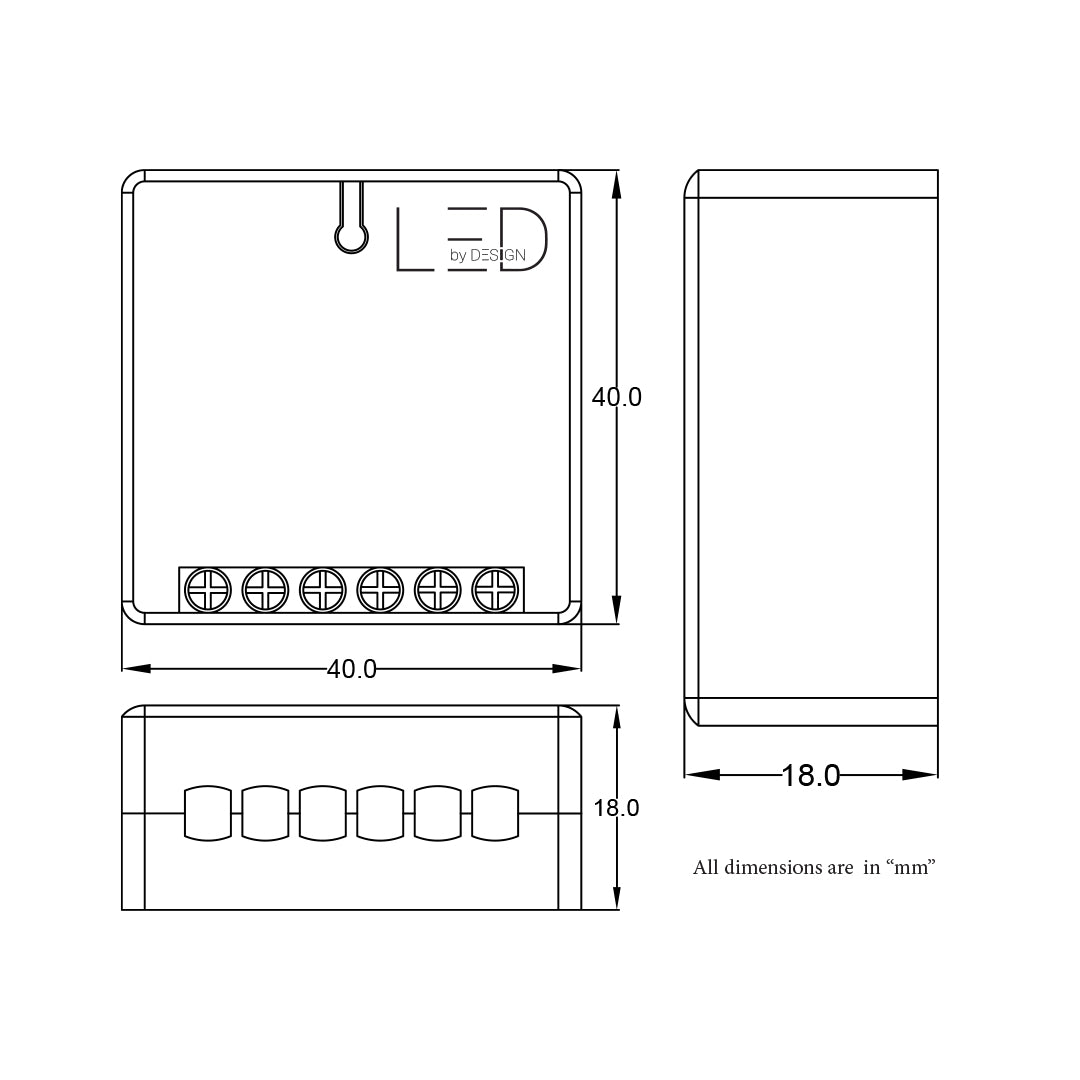

| Case size | 40 x 40 x 18 mm |
| Weight(g) | 19 |
Couldn't load pickup availability
Regular price
$35.00
Regular price
Shipping calculated at checkout.
Downloads
Close
1 / 4

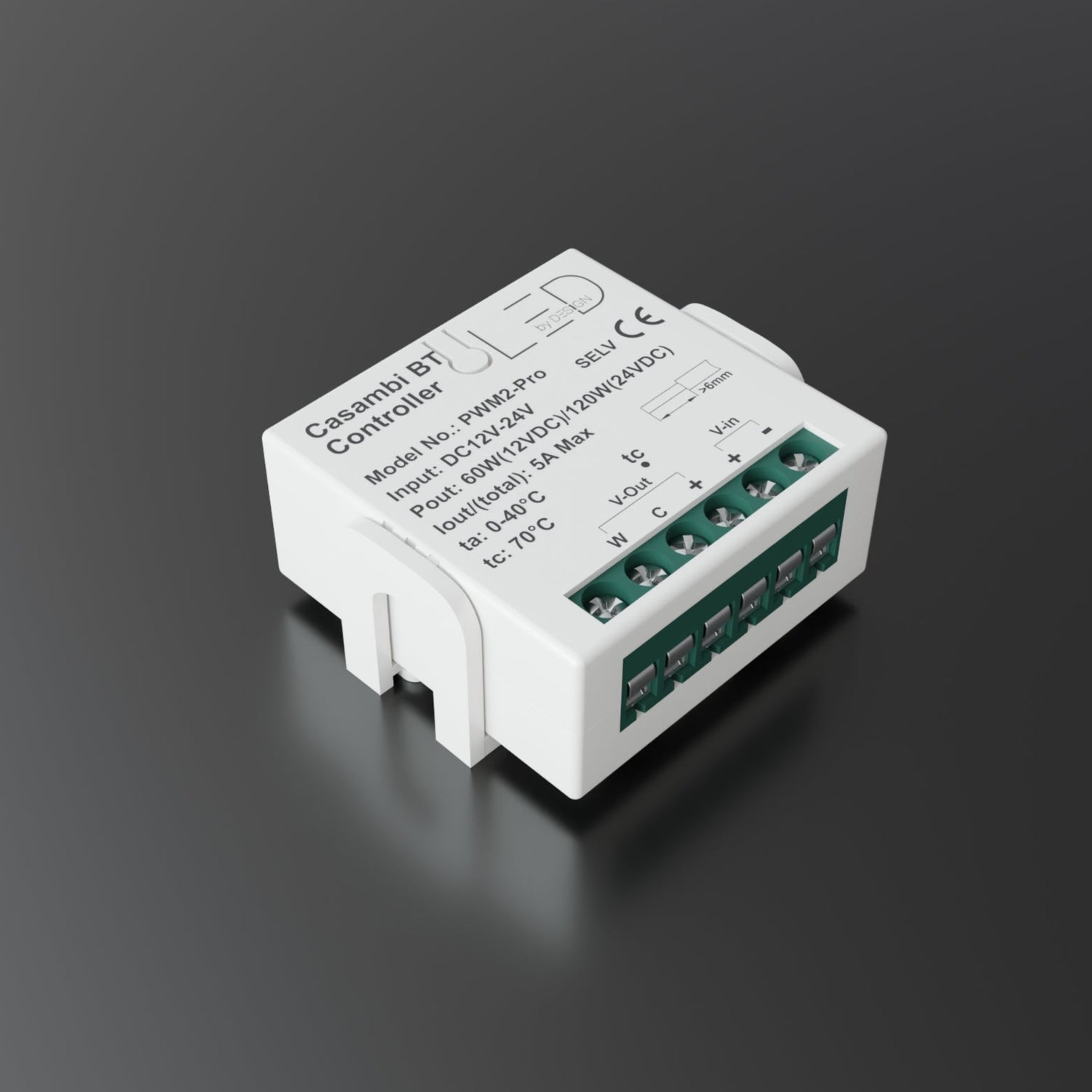

Casambi BT Controller PWM2-Pro
