4CC LED Controller CE Certified
4CC LED Controller CE Certified
4CC LED Controller CE Certified

4CC LED Controller CE Certified

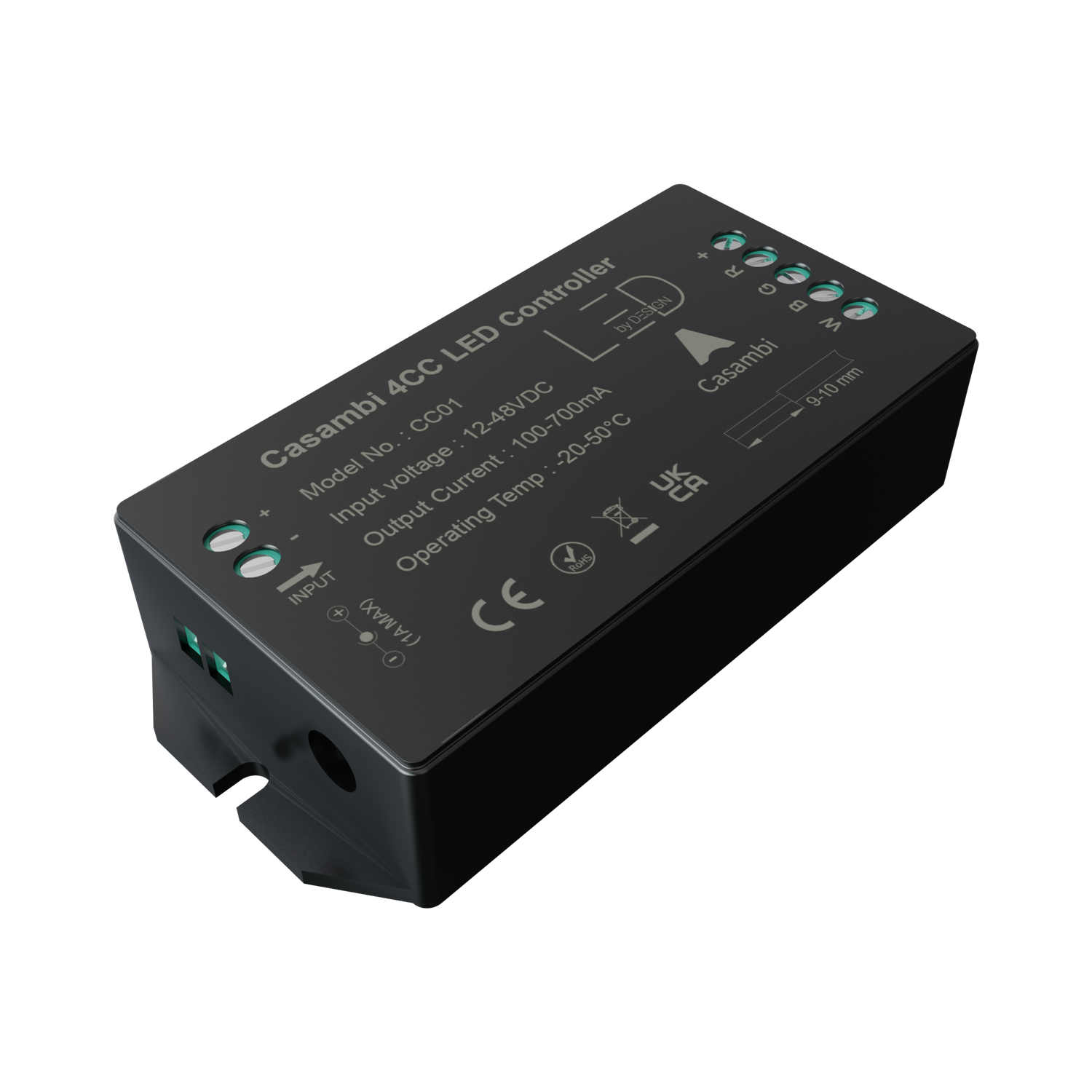

The Casambi 4CC LED Controller by LED BY DESIGN is a 1- 4 channel dimmer designed
specifically for controlling Constant-Current LED loads, such as Spot-Light and LED modules, White, monochromatic colour, Dynamic White, RGB and RGB+W. Compatible with 12-48 VDC power supplies, it supports a wide output current range from 100mA to 700mA. It features Tuneable White, Dim2Warm, RGB, and RGB+W control options. Beyond simple dimming, the Casambi 4CC LED Controller allows for creating advanced lighting scenarios, animations, timers, and daylight- responsive controls, making it ideal for complex lighting systems

Technical Specifications:

Input Power 12-48 VDC
Output Vin (-3)
Output Current 100mA-700mA (Adjustable via Casambi App)
Wire Type 14-22AWG
Operating temp -20 to 50°C
Size (mm) 100 x 47 x 2
Size (in) 4 x 2 x 1
Weight(g) 51
