4CC LED Controller CE Certified
4CC LED Controller CE Certified
4CC LED Controller CE Certified

4CC LED Controller CE Certified

Description

The Casambi 4CC LED Controller by LED BY DESIGN is a 1- 4 channel dimmer designed
specifically for controlling Constant-Current LED loads, such as Spot-Light and LED modules, White, monochromatic colour, Dynamic White, RGB and RGB+W. Compatible with 12-48 VDC power supplies, it supports a wide output current range from 100mA to 700mA. It features Tuneable White, Dim2Warm, RGB, and RGB+W control options. Beyond simple dimming, the Casambi 4CC LED Controller allows for creating advanced lighting scenarios, animations, timers, and daylight- responsive controls, making it ideal for complex lighting systems

Technical Specifications:

Input Power 12-48 VDC
Output Vin (-3)
Output Current 100mA-700mA (Adjustable via Casambi App)
Wire Type 14-22AWG
Operating temp -20 to 50°C

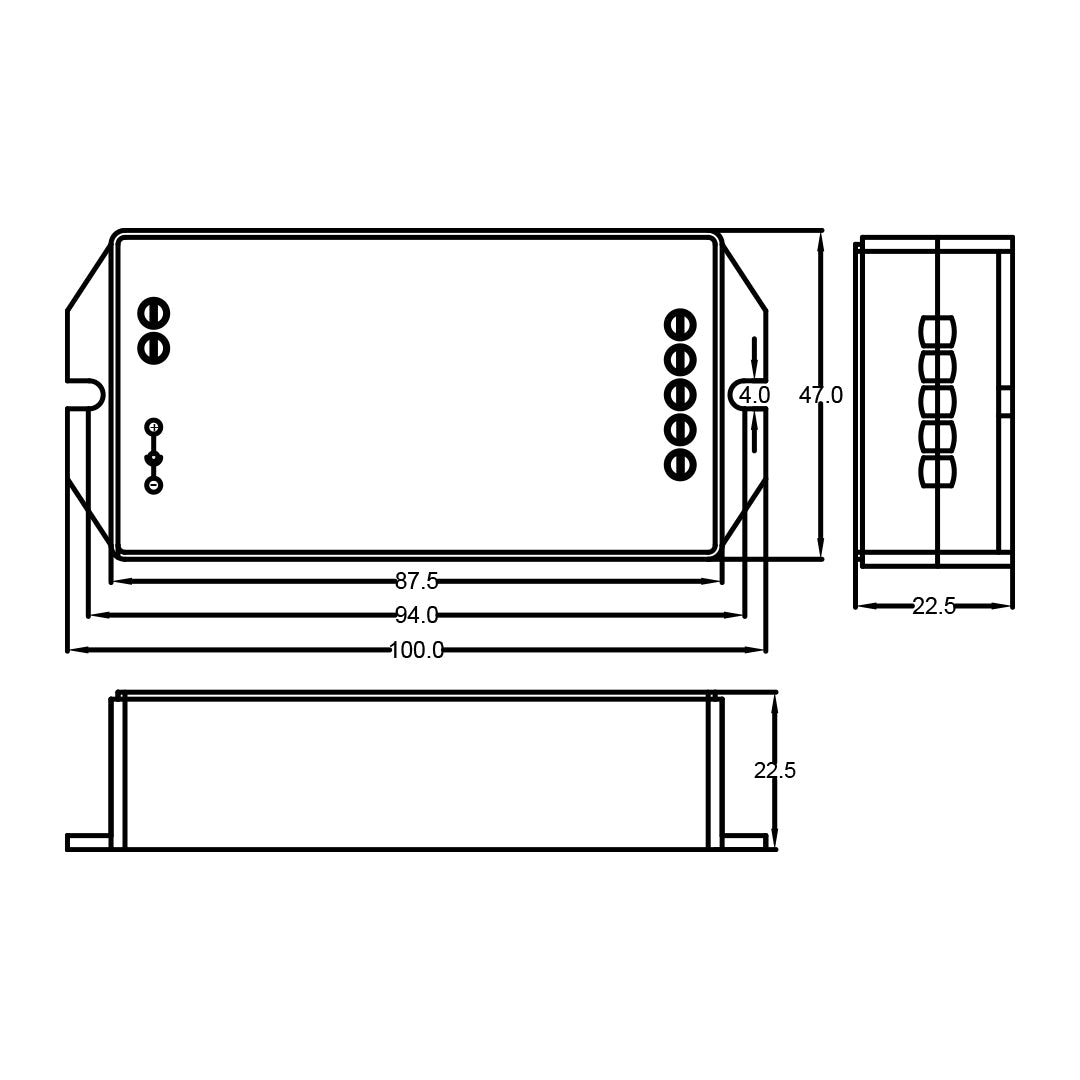

Size (mm) 100 x 47 x 23
Weight(g) 51
Regular price $99.00
Regular price Sale price $99.00
Shipping calculated at checkout.
Request Quotation
